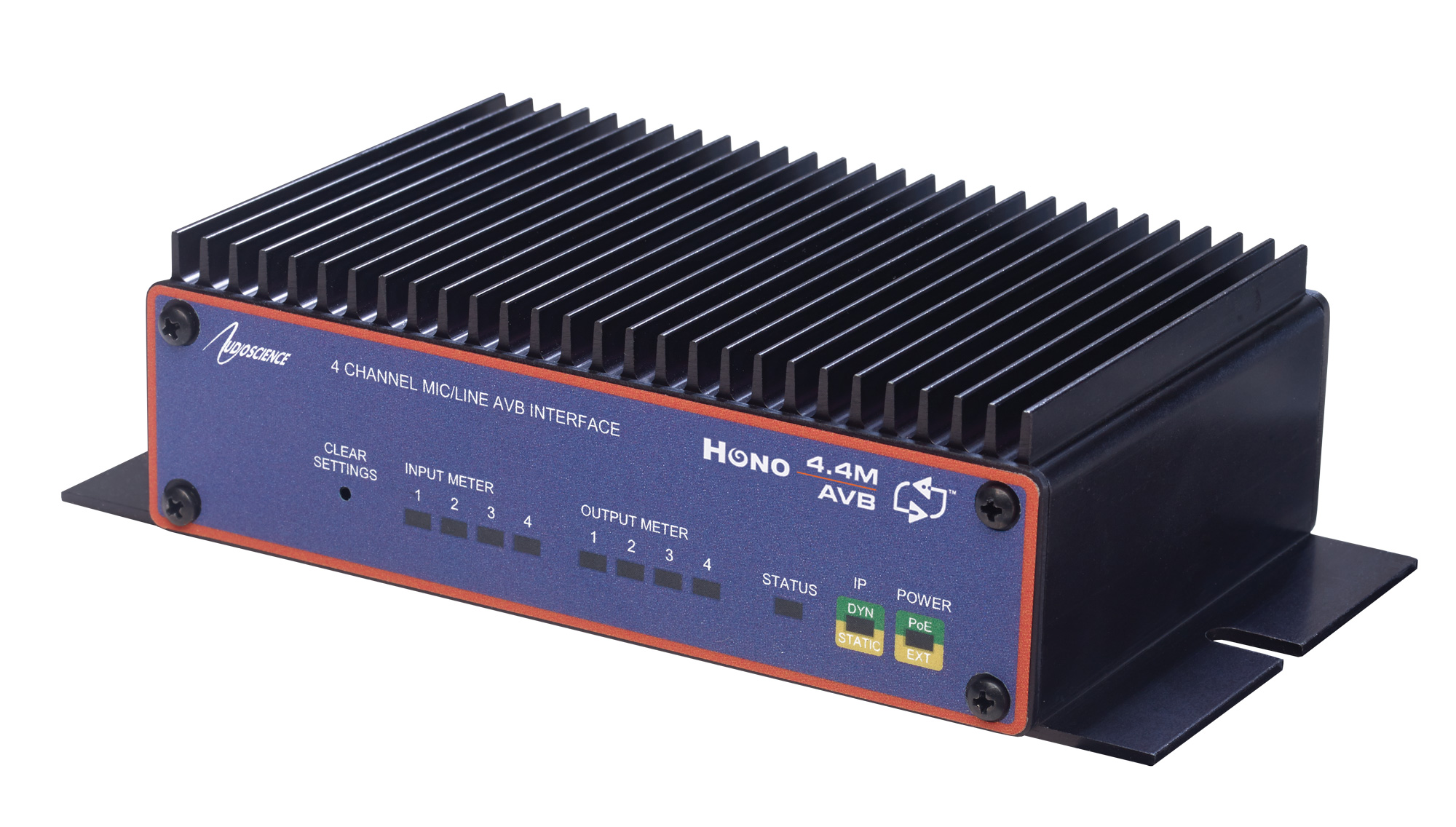

Hono™ AVB Mini

AudioScience’s Hono™ AVB Mini products are perfect for smaller quantity input and output requirements.

The Hono AVB 4.4M (and 2.2M) receives four (or two) channels of AVB and sends them to balanced analog audio outputs, while simultaneously inputting four (or two) channels of mic/line level balanced audio and transmitting them as AVB.

The Hono AVB 4.4D (and2.2D) receives four (or two) channels of AVB and sends them to their AES/EBU audio outputs, while simultaneously inputting four (or two) channels of AES/EBU audio and transmitting them as AVB.

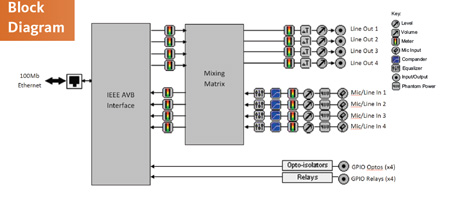

All models support 48kHz and 96kHz samplerates. The IEEE1722.1 Discovery and Control protocol allows the Hono to be configured using 3rd party AVB Controllers. DSP functionality includes a parametric equalizer and compander/limiter on the inputs and programmable delays on the outputs as well as full matrix mixing.

The Hono™ AVB Mini products: the ideal solution for networked audio systems that need a small quantity of additional inputs or outputs.

FEATURES

Inputs
   •  Hono AVB 4.4M and 2.2M: 4 or 2 balanced analog mic/line inputs
   •  Hono AVB 4.4D and 2.2D: 4 or 2 AES/EBU inputs
   •  Software adjustable, non-volatile, levels of –50 to +24dBu
   •  100dB DNR, -90dB THD+N, -110dBu EIN
   •  +48V phantom power individually available on all inputs
   •  3.81mm pluggable terminal block connectors

Outputs
   •  Hono AVB 4.4M and 2.2M: 4 or 2 balanced analog mic/line outputs
   •  Hono AVB 4.4D and 2.2D: 4 or 2 AES/EBU outputs
   •  Software adjustable, non-volatile levels of -10 to +24dBu

GPIO
   •  Four opto-isolated inputs
   •  Four relay isolated outputs


AVB
   •  Four or two channels of AVB in and out
   •  Media clock in and out for synching
   •  Stream formats of 1,2,4,8,16 and 32 channels
   •  AVnu Certified

Power
   •  Power over Ethernet (PoE) 802.3af compliant
   •  External +5V power supply if POE not being used

Chassis
   •  Wings allow easy mounting
   •  5.25inches W x 3.125inches L x 1.37inches H
   •  Rackable using optional 1U front panel (p/n: ENC2305)

Control
   •  Controllable from ASIControl and 3rd party IEEE1722.1 Controller software
 Click link below to download supporting software  Version  Date
ASIControl/Net  Latest Available
Hono AVB Controller  Latest Available  2016-10-04

 Available Documentation  Date
Hono AVB Mini Quick Start Guide  2016-10-04

 Click below to download firmware  Date  Version  Misc  Docs  Old Firmware
Hono AVB Mini firmware(AVnu certified)  2016-12-19  0.1.49  Notes  Instructions  Prior versions

 Hono™ AVB Mini

 Model Network Protocol Audio Channels In Audio Channels Out Input Type Output Type Connectors Other
Hono AVB 2.2M AVB 2 2 Balanced Analog Mic/Line Balanced Analog Line Terminal Block Phantom power on inputs
Hono AVB 4.4M AVB 4 4 Balanced Analog Mic/Line Balanced Analog Line Terminal Block Phantom power on inputs
Hono AVB 2.2D AVB 2 2 AES/EBU AES/EBU Terminal Block Phantom power on inputs
Hono AVB 4.4D AVB 4 4 AES/EBU AES/EBU Terminal Block Phantom power on inputs
