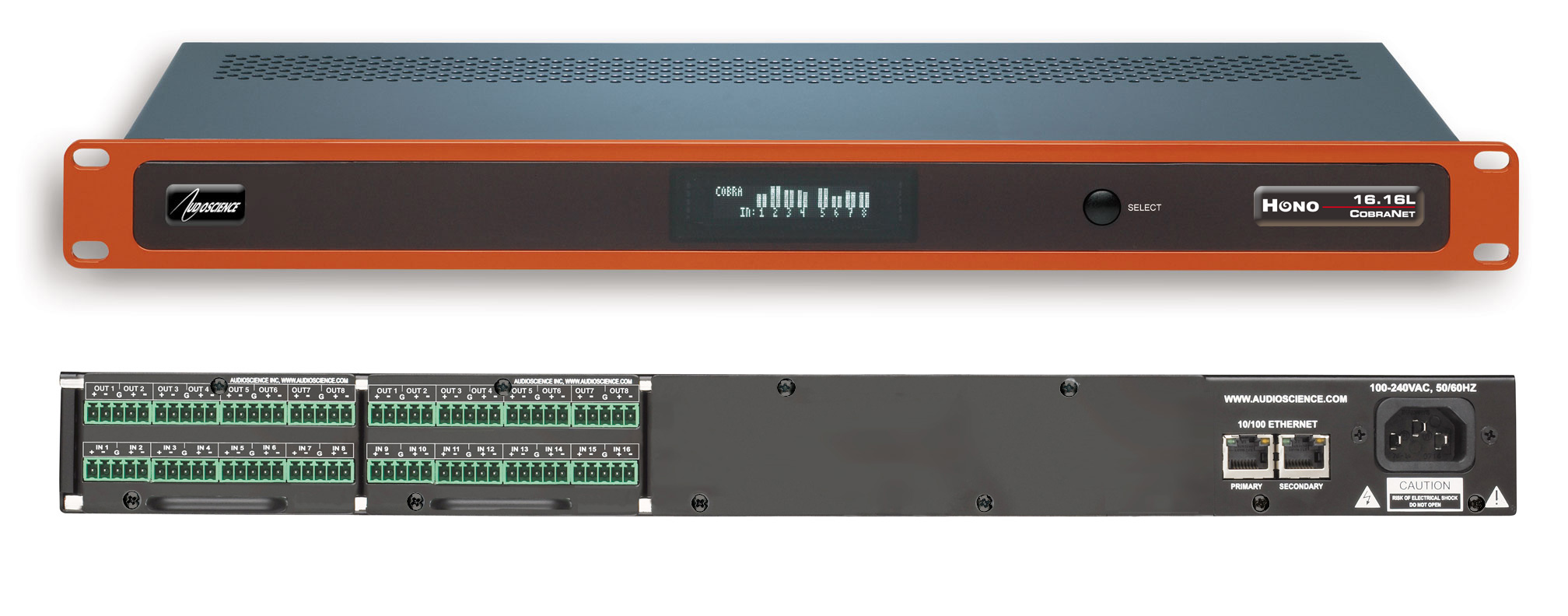

Hono™ CobraNet Fixed


AudioScience’s Hono™ CobraNet Series has 12 pre-configured devices for the most popular I/O combinations.

These networked audio interfaces are built in a 1U rackmount format and provide up to 16 channels of 48kHz CobraNet receive and transmit. These units feature a powerful Texas Instruments 32bit floating point DSP that allows sophisticated switching/mixing. A graphics display on the unit’s front panel shows peak meters and CobraNet status. AudioScience provides application software that may be used to set up all of the Hono™ Series units.

ASIControl sets up all internal features of the unit and allows CobraNet routing connections to be set up between the Hono™ Series units and any other CobraNet device on the network. ASIControl is part of the Windows driver install. Cirrus Logic's CobraNet Discovery can also be used for routing connections.

FEATURES

  • Up to 16 CobraNet input channels and 16 output channels at 48kHz on 100Mbit Ethernet with redundant RJ-45 connectors.
  • 4 CobraNet Transmitters and 8 CobraNet Receivers
  • 1U rack-mount unit
  • Powerful floating point DSP provides metering, level control, and up to 20 dB gain on all signal paths
  • Interoperable with AudioScience CobraNet Sound Cards and other 3rd party CobraNet equipment
  • Built-in 90-260VAC power supply
  • LUA scripting extensions
  •  Hono™ CobraNet Fixed

     Model Network Protocol Audio Channels In Audio Channels Out Input Type Output Type

    Connectors

    Other

    Hono CobraNet 8.0M CobraNet 8 0 Balanced Analog Mic/Line NA

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 8.0L CobraNet 8 0 Balanced Analog Line NA

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 16.0M CobraNet 16 0 Balanced Analog Mic/Line NA

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 16.0L CobraNet 16 0 Balanced Analog Line NA

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 0.8L CobraNet 0 8 NA Balanced Analog Line

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 0.16L CobraNet 0 16 NA Balanced Analog Line

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 8.8M CobraNet 8 8 Balanced Analog Mic/Line Balanced Analog Line

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 8.8L CobraNet 8 8 Balanced Analog Line Balanced Analog Line

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 16.16M CobraNet 16 16 Balanced Analog Mic/Line Balanced Analog Line

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 16.16L CobraNet 16 16 Balanced Analog Line Balanced Analog Line

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 8.8D CobraNet 8 8 AES/EBU AES/EBU

    Terminal Block

    1U rackmount
    120/220 VAC power supply

    Hono CobraNet 16.16D CobraNet 16 16 AES/EBU AES/EBU

    Terminal Block

    1U rackmount
    120/220 VAC power supply
