The ASI6685 is a professional PCIe sound card designed for use in legacy Axia Livewire™ IP-audio based radio broadcast automation systems. It uses the legacy Axia Livewire protocol to record and play audio streams over a standard Ethernet network.

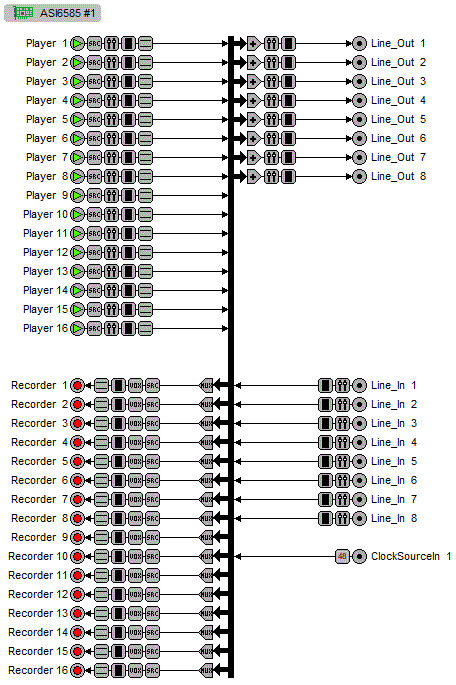

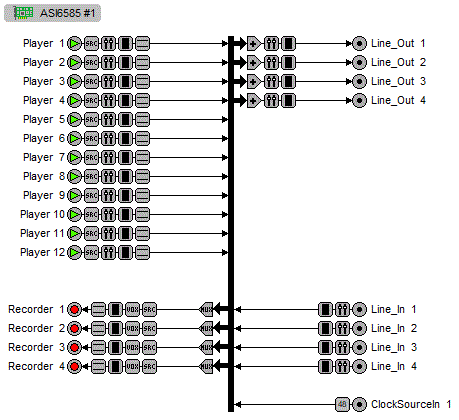

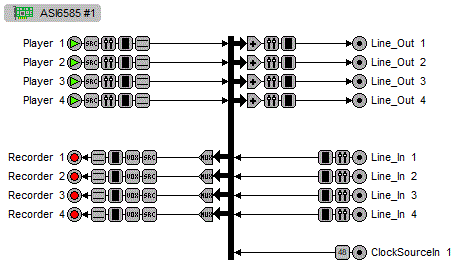

Providing up to 16 play streams that are mixed to 8 stereo outputs and up to 16 record streams fed from 8 stereo inputs, the ASI6685 features AudioScience's unique "anything to anywhere" mixing and routing.
A choice of uncompressed PCM, MPEG layer 2, and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.
DSP based functionality includes MRX™ multi-rate mixing technology that allows streams of different sample-rates and formats to be mixed digitally. TSX™ time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.
For surround sound applications, SSX2 mode allows multichannel streams of up to 8 channels to be played, recorded and mixed.
|ASI6585/ASI6685 Datasheet||Windows Drivers|
|ASI6585/ASI6685 Axia Node quick start guide||Linux HPI and ALSA Drivers|
|See "Livewire Firmware Updates" section of datasheet||Firmware v2.7.1d_r2|
|Previous versions of Livewire firmware ->||Older firmware|
