ASI5720 and ASI5722 - Low Profile PCI Express Sound Cards



The ASI5720 and ASI5722 are professional Low Profile PCI-Express sound cards designed for use in the installed sound, entertainment and broadcast markets.

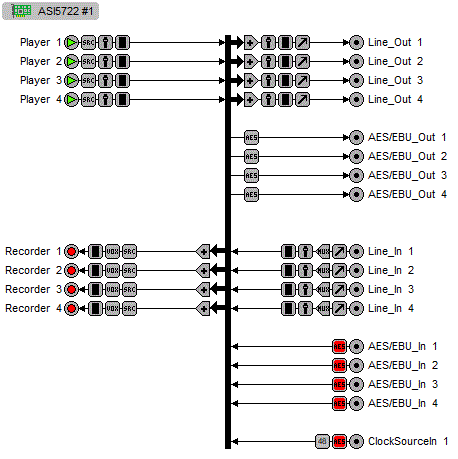

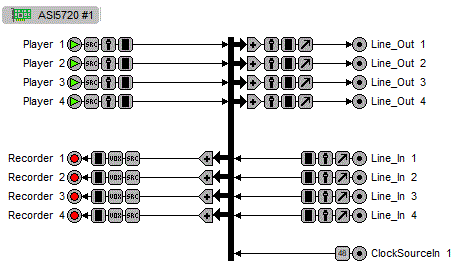

Providing up to 6 play streams that are mixed to 2 balanced stereo outputs and 4 record streams fed from 2 balanced stereo inputs, the ASI572x series features AudioScience’s unique “anything to anywhere” mixing and routing.

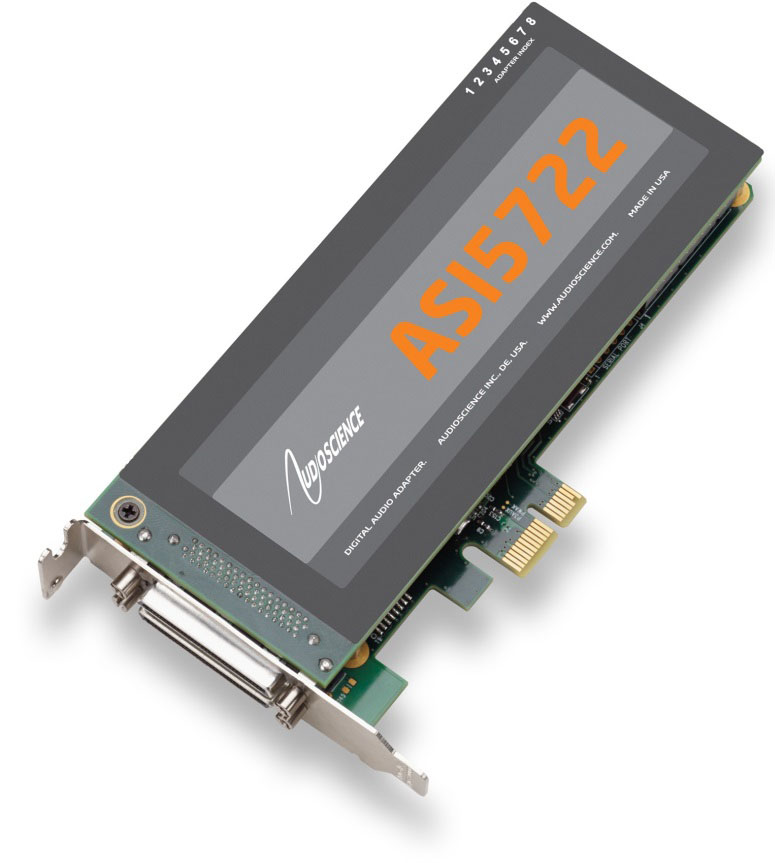

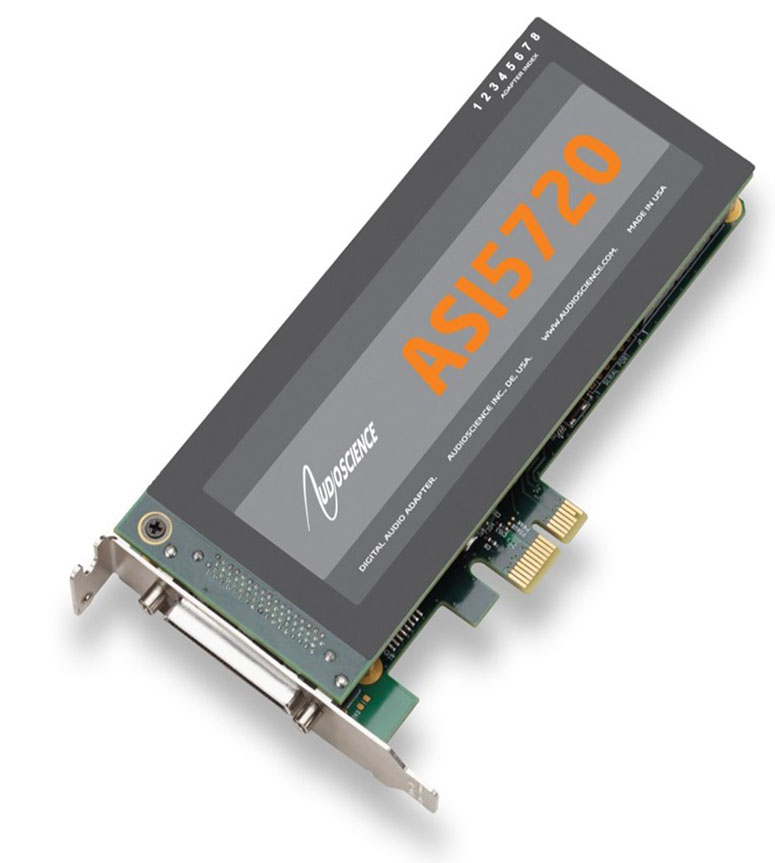

The ASI5722 provides both balanced analog and AES/EBU inputs and outputs. The ASI5720 provides analog inputs and outputs only. The maximum analog input and output level is +24dBu.

Uncompressed PCM, in a choice of precision is available for both recording and playback.

For emerging surround sound applications, SSX2 mode allows multichannel streams of up to 8 channels to be played, recorded and mixed.


FEATURES

  • 4 or 6 stereo/mono streams of playback into 2 stereo outputs
  • 2 or 4 stereo/mono streams of record from 2 stereo inputs
  • Formats include 8,16,24 and 32 bit PCM with sample rates to 96kHz
  • SSX2 mode for multichannel record, playback and mixing
  • Balanced stereo analog I/O with levels to +24dBu
  • 24bit ADC and DAC with 110dB DNR and 0.0015% THD+N
  • AES/EBU I/O with sample rate converters on all inputs (ASI5722 only)
  • Dedicated AES/EBU and Word clock Sync input (ASI5722 only)
  • Low profile short length PCI card format (6.6 inches/168mm)
  • Up to 8 cards in one system
  • Windows and Linux software drivers available
