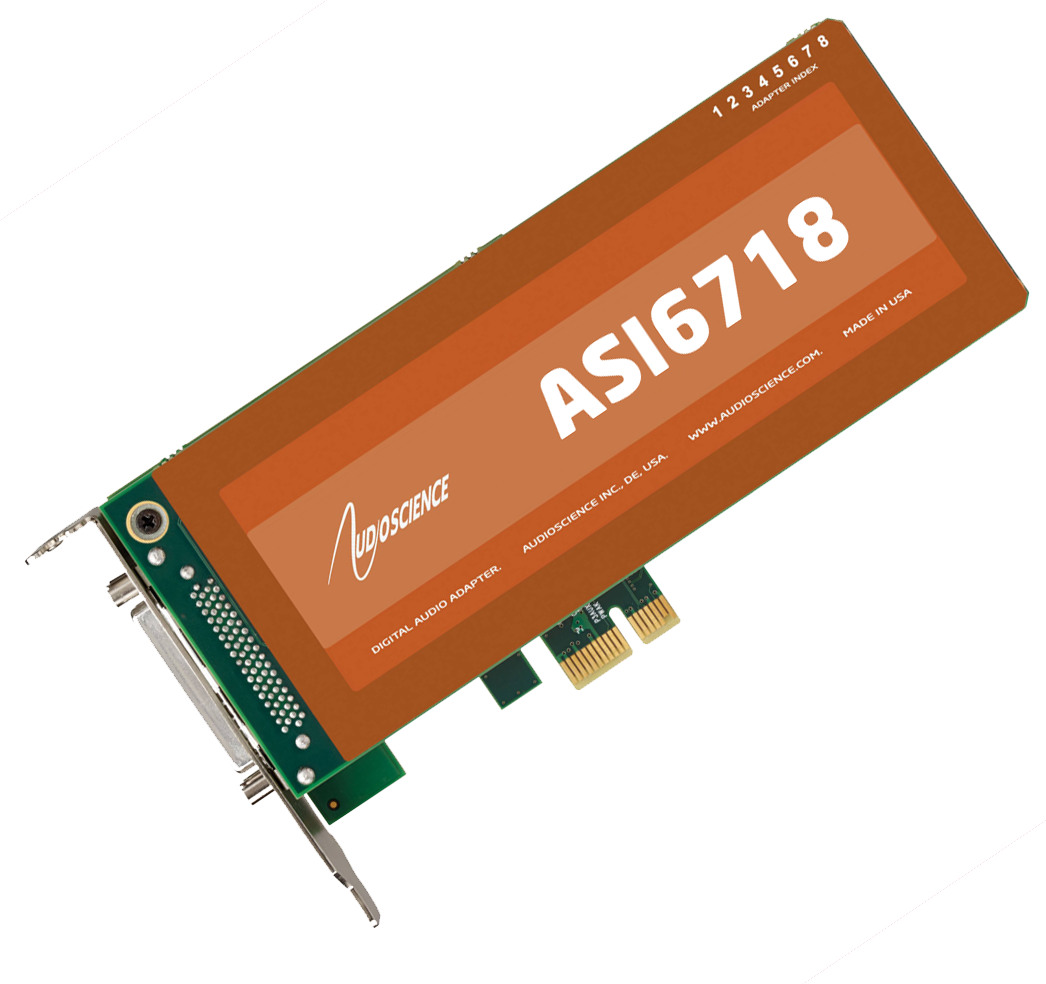

ASI6714 and ASI6718 - LOW PROFILE PCI Express Sound Cards


The ASI6714 and ASI6718 are low profile professional PCI-Express sound cards designed for use in radio broadcast automation.

Providing up to 16 play streams that are mixed to 4 (ASI6714) or 8 (ASI6718) stereo outputs and up to 2 record streams fed from one stereo input, the ASI6714 and ASI6718 feature AudioScience’s unique “anything to anywhere” mixing and routing.

The ASI6714 and ASI6718 provide both balanced analog and AES/EBU inputs and outputs. The maximum analog input and output level is +24dBu.

A choice of uncompressed PCM, MPEG layer 2 and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.

ASI6714 and ASI6718 functionality includes MRX™ multi-rate mixing technology that allows streams of different sample-rates and formats to be mixed digitally. TSX™ time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.

For emerging surround sound applications, SSX2™ mode allows multichannel streams of up to 8 channels to be played and mixed.

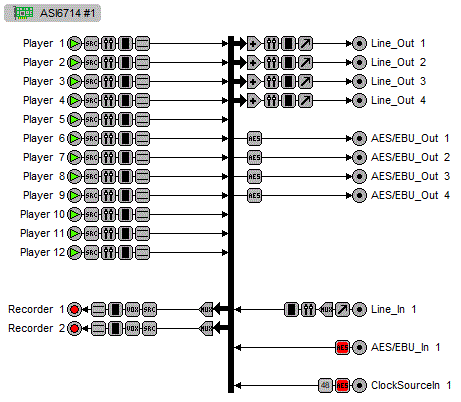

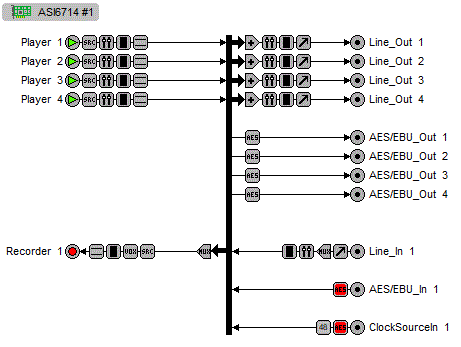

  • 4/12 mono/stereo streams of playback into 4 stereo outputs (ASI6714)

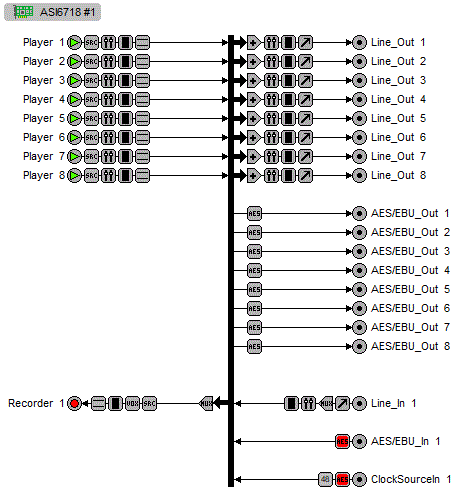

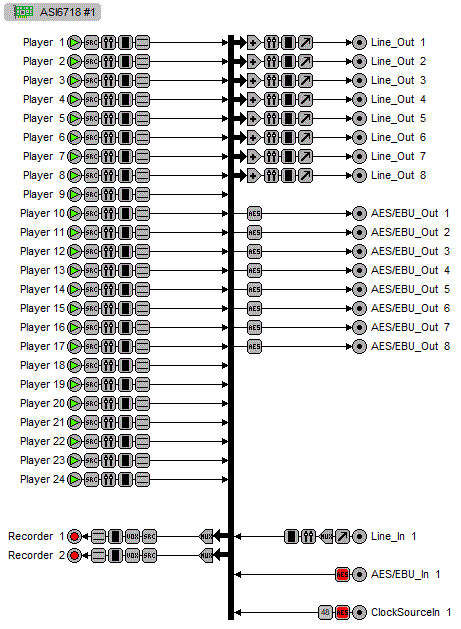

  • 8/16 mono/stereo streams of playback into 8 stereo outputs (ASI6718)
  • 1/2 mono/stereo streams of record from 1 stereo input
  • PCM, MPEG-L2 and MP3 formats with sample rates to 96kHz
  • MRX technology supports mixing of multiple formats and rates
  • TSX time scaling by up to +/-20%
  • SSX2 mode for multichannel playback and mixing
  • Balanced stereo analog I/O with levels to +24dBu
  • 24bit ADC and DAC with 110dB SNR and 0.0015% THD+N
  • AES/EBU I/O with sample rate converters on all inputs
  • Dedicated AES/EBU and Word clock Sync input
  • SoundGuard transient voltage suppression on all I/O
  • Short length, low profile PCI card format (6.6 inches/168mm)
  • Up to 4 cards in one system
  • Windows and Linux software drivers available
