Cables & Breakout Boxes
Your audio inputs and outputs are only as good as your connections to them. AudioScience provides high quality cables and breakout boxes for all of our products.
Whether you just need cables or are looking to rack mount your I/O, our OEM cables and Breakout Boxes are an easy solution.
Our cable solutions offer professional XLR connections in a variety of configurations designed to match your sound card model.
3 models of break out boxes provide connection options for XLR and the popular StudioHub RJ45 connectors for ultimate flexibility.
Contact Sales!
(Need tech support?)

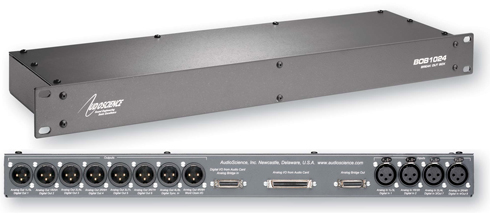

StudioHub HD Breakout Boxes (BOB)
| Model | Analog I/O* | AES/EBU I/O* | GPIO† | Connectors | Compatible cards‡ |
|---|---|---|---|---|---|
| 16-XLRF | 8 stereo/16 mono | 16 | n/a | XLR Female and RJ-45 StudioHub | ASI5700/6700 |
| 16-XLRM | 8 stereo/16 mono | 16 | n/a | XLR Male and RJ-45 StudioHub | ASI5700/6700 |
| 8-XLRFM | 4 stereo/8 mono | 16 | n/a | 8 XLR Female, 8XLR Male and RJ-45 StudioHub | ASI5700/6700 |
| Model | 16-XLRF |
|---|---|
| Analog I/O* | 8 stereo/16 mono |
| AES/EBU I/O* | 16 |
| GPIO† | n/a |
| Connectors | XLR Female and RJ-45 StudioHub |
| Compatible cards‡ | ASI5700/6700 |
| Model | 16-XLRM |
| Analog I/O* | 8 stereo/16 mono |
| AES/EBU I/O* | 16 |
| GPIO† | n/a |
| Connectors | XLR Male and RJ-45 StudioHub |
| Compatible cards‡ | ASI5700/6700 |
| Model | 8-XLRFM |
| Analog I/O* | 4 stereo/8 mono |
| AES/EBU I/O* | 16 |
| GPIO† | n/a |
| Connectors | 8 XLR Female, 8XLR Male and RJ-45 StudioHub |
| Compatible cards‡ | ASI5700/6700 |
*Can be operated in analog OR AES/EBU mode but not both at the same time.
†GPIO only available when paired with ASI67xx series of cards.
‡Breakout boxes will match the capabilities of the card they are paired with.
†GPIO only available when paired with ASI67xx series of cards.
‡Breakout boxes will match the capabilities of the card they are paired with.

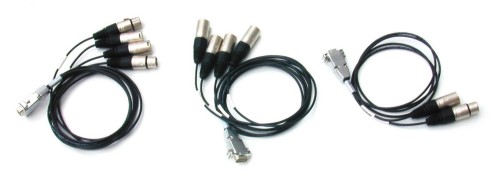

Cables

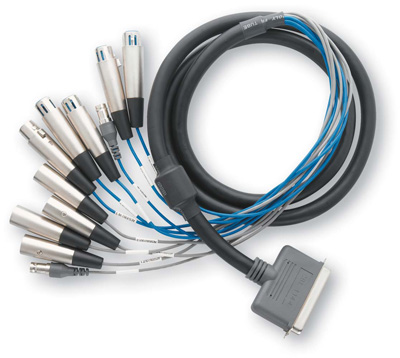

CBL1144
CBL4022

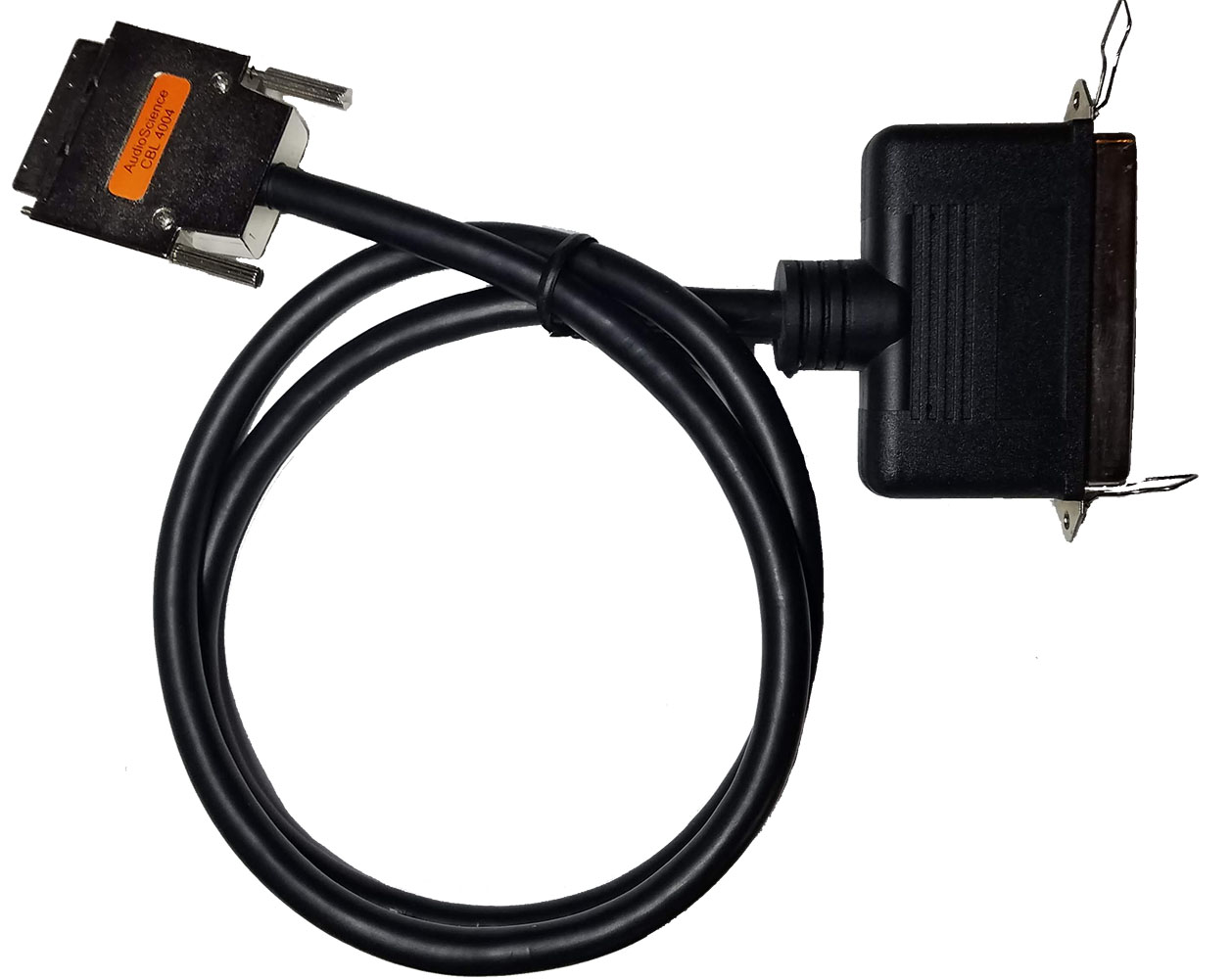

CBL4004
| Model | Type | Card end | Audio end | Compatible products | Usage |
|---|---|---|---|---|---|
| CBL1001 | Balanced analog | DB-9 male | XLR | ASI5111/ASI5211 | Analog I/O |
| CBL1003 | AES/EBU digital | DB-9 female | XLR | ASI5111/ASI5211 | AES/EBU I/O |
| CBL1004 | Balanced analog | Mini DB50 | Centronics 50pin | ASI5042/5044 ASI6044 ASI6114/6118 ASI6244 ASI6514/6614 ASI6545/6645 ASI6544/6644 |
Adapts between the Mini DB50 and the Centronics 50pin Pairs with CBL1044 for card to analog XLR connections |
| CBL1006 | Balanced analog | Mini DB50 | Mini DB50 | HUB-12 BOB1024 |
Analog connection from HUB-12 or BOB1024 to ASI6600/5600/5500 cards |
| CBL1022 | Balanced analog | Mini DB50 | XLR | ASI5020 ASI5520 ASI5620/5622 ASI6012 ASI6122 ASI6520/6620 ASI6522/6622 |
One piece cable for analog connections on cards with 2 inputs/outputs |
| CBL1044 | Balanced analog | Centronics 50pin | XLR | ASI5042/5044 ASI6044 ASI6114 ASI6244 ASI6514/6614 ASI6540/6640 ASI6544/6644 |
Must be paired with CBL1004 for card to XLR connections |
| CBL1101 | AES/EBU digital | Mini DB26 | Centronics 50pin | ASI5041/5044 ASI6114 ASI6118 ASI6244 ASI6514/6614 ASI6544/6644 |
Adapts between the Mini DB26 and the Centronics 50pin Pairs with CBL1144 for AES/EBU connections |
| CBL1102 | AES/EBU digital | Mini DB26 | Mini DB26 | HUB-12 BOB1024 |
For AES/EBU connections to HUB-12 or BOB1024 Also used to daisy chain multiple BOBs together |
| CBL1122 | AES/EBU digital | Mini DB26 | XLR | ASI5622 ASI6122 ASI6522/6622 |
One piece cable for AES/EBU connections on cards with 2 inputs/outputs |
| CBL1144 | AES/EBU digital | Centronics 50pin | XLR | ASI5041/5044 ASI6114 ASI6118 ASI6244 ASI6514/6614 ASI6544/6644 |
Must be paired with CBL1101 for card to XLR connections |
| CBL1312 | Balanced analog and AES/EBU | DB26 HD male | XLR | ASI5810/5811 | One piece cable for analog and AES/EBU connections |
| CBL1313 | Balanced analog and AES/EBU | DB26 HD male | XLR | ASI5812 | One piece cable for analog and AES/EBU connections |
| CBL3002 | Analog | DB-9 male | 8 x RCA | ASI87xx | For monitoring tuner audio |
| CBL3004 | Analog | Mini DB50 | 24 x RCA | ASI8914 ASI8821/8921 |
For monitoring tuner audio |
| CBL4001 | Analog or AES/EBU | VHDCI | VHDCI | ASI57xx/ASI67xx | For connecting to BOB1038 analog or digital |
| CBL4004 | Balanced analog | VHDCI | Centronics 50pin | ASI57xx/ASI67xx | Adapts between the VHDCI and the Centronics 50pin Pairs with CBL1044 for card to analog XLR connections |
| CBL4005 | Balanced analog | VHDCI | HD50 | ASI57xx/ASI67xx | Connects newer cards to HUB-12 or BOB1024 for analog connections |
| CBL4022 | Analog | VHDCI | XLR | ASI572x/ASI672x | One piece cable for analog connections for cards with only 2 inputs/outputs |
| CBL4104 | AES/EBU digital + GPIO | VHDCI | Centronics 50pin | ASI57xx/ASI67xx | AES/EBU and GPIO connections on newer series cards Pair with CBL1144 for XLR connections |
| CBL4105 | AES/EBU digital | VHDCI | HD26 | ASI57xx/ASI67xx | Connects newer cards to HUB-12 or BOB1024 for AES/EBU connections |
| CBL4122 | AES/EBU digital + GPIO | VHDCI | XLR + Centronics 50pin | ASI572x/ASI672x | One piece AES/EBU + GPIO connections for cards with only 2 inputs/outputs |
| Model | CBL1001 |
|---|---|
| Type | Balanced analog |
| Card end | DB-9 male |
| Audio end | XLR |
| Compatible products | ASI5111/ASI5211 |
| Usage | Analog I/O |
| Model | CBL1003 |
| Type | AES/EBU digital |
| Card end | DB-9 female |
| Audio end | XLR |
| Compatible products | ASI5111/ASI5211 |
| Usage | AES/EBU I/O |
| Model | CBL1004 |
| Type | Balanced analog |
| Card end | Mini DB50 |
| Audio end | Centronics 50pin |
| Compatible products | ASI5042/5044 ASI6044 ASI6114/6118 ASI6244 ASI6514/6614 ASI6545/6645 ASI6544/6644 |
| Usage | Adapts between the Mini DB50 and the Centronics 50pin Pairs with CBL1044 for card to analog XLR connections |
| Model | CBL1006 |
| Type | Balanced analog |
| Card end | Mini DB50 |
| Audio end | Mini DB50 |
| Compatible products | HUB-12 BOB1024 |
| Usage | Analog connection from HUB-12 or BOB1024 to ASI6600/5600/5500 cards |
| Model | CBL1022 |
| Type | Balanced analog |
| Card end | Mini DB50 |
| Audio end | XLR |
| Compatible products | ASI5020 ASI5520 ASI5620/5622 ASI6012 ASI6122 ASI6520/6620 ASI6522/6622 |
| Usage | One piece cable for analog connections on cards with 2 inputs/outputs |
| Model | CBL1044 |
| Type | Balanced analog |
| Card end | Centronics 50pin |
| Audio end | XLR |
| Compatible products | ASI5042/5044 ASI6044 ASI6114 ASI6244 ASI6514/6614 ASI6540/6640 ASI6544/6644 |
| Usage | Must be paired with CBL1004 for card to XLR connections |
| Model | CBL1101 |
| Type | AES/EBU digital |
| Card end | Mini DB26 |
| Audio end | Centronics 50pin |
| Compatible products | ASI5041/5044 ASI6114 ASI6118 ASI6244 ASI6514/6614 ASI6544/6644 |
| Usage | Adapts between the Mini DB26 and the Centronics 50pin Pairs with CBL1144 for AES/EBU connections |
| Model | CBL1102 |
| Type | AES/EBU digital |
| Card end | Mini DB26 |
| Audio end | Mini DB26 |
| Compatible products | HUB-12 BOB1024 |
| Usage | For AES/EBU connections to HUB-12 or BOB1024 Also used to daisy chain multiple BOBs together |
| Model | CBL1122 |
| Type | AES/EBU digital |
| Card end | Mini DB26 |
| Audio end | XLR |
| Compatible products | ASI5622 ASI6122 ASI6522/6622 |
| Usage | One piece cable for AES/EBU connections on cards with 2 inputs/outputs |
| Model | CBL1144 |
| Type | AES/EBU digital |
| Card end | Centronics 50pin |
| Audio end | XLR |
| Compatible products | ASI5041/5044 ASI6114 ASI6118 ASI6244 ASI6514/6614 ASI6544/6644 |
| Usage | Must be paired with CBL1101 for card to XLR connections |
| Model | CBL1312 |
| Type | Balanced analog and AES/EBU |
| Card end | DB26 HD male |
| Audio end | XLR |
| Compatible products | ASI5810/5811 |
| Usage | One piece cable for analog and AES/EBU connections |
| Model | CBL1313 |
| Type | Balanced analog and AES/EBU |
| Card end | DB26 HD male |
| Audio end | XLR |
| Compatible products | ASI5812 |
| Usage | One piece cable for analog and AES/EBU connections |
| Model | CBL3002 |
| Type | Analog |
| Card end | DB-9 male |
| Audio end | 8 x RCA |
| Compatible products | ASI87xx |
| Usage | For monitoring tuner audio |
| Model | CBL3004 |
| Type | Analog |
| Card end | Mini DB50 |
| Audio end | 24 x RCA |
| Compatible products | ASI8914 ASI8821/8921 |
| Usage | For monitoring tuner audio |
| Model | CBL4001 |
| Type | Analog or AES/EBU |
| Card end | VHDCI |
| Audio end | VHDCI |
| Compatible products | ASI57xx/ASI67xx |
| Usage | For connecting to BOB1038 analog or digital |
| Model | CBL4004 |
| Type | Balanced analog |
| Card end | VHDCI |
| Audio end | Centronics 50pin |
| Compatible products | ASI57xx/ASI67xx |
| Usage | Adapts between the VHDCI and the Centronics 50pin Pairs with CBL1044 for card to analog XLR connections |
| Model | CBL4005 |
| Type | Balanced analog |
| Card end | VHDCI |
| Audio end | HD50 |
| Compatible products | ASI57xx/ASI67xx |
| Usage | Connects newer cards to HUB-12 or BOB1024 for analog connections |
| Model | CBL4022 |
| Type | Analog |
| Card end | VHDCI |
| Audio end | XLR |
| Compatible products | ASI572x/ASI672x |
| Usage | One piece cable for analog connections for cards with only 2 inputs/outputs |
| Model | CBL4104 |
| Type | AES/EBU digital + GPIO |
| Card end | VHDCI |
| Audio end | Centronics 50pin |
| Compatible products | ASI57xx/ASI67xx |
| Usage | AES/EBU and GPIO connections on newer series cards Pair with CBL1144 for XLR connections |
| Model | CBL4105 |
| Type | AES/EBU digital |
| Card end | VHDCI |
| Audio end | HD26 |
| Compatible products | ASI57xx/ASI67xx |
| Usage | Connects newer cards to HUB-12 or BOB1024 for AES/EBU connections |
| Model | CBL4122 |
| Type | AES/EBU digital + GPIO |
| Card end | VHDCI |
| Audio end | XLR + Centronics 50pin |
| Compatible products | ASI572x/ASI672x |
| Usage | One piece AES/EBU + GPIO connections for cards with only 2 inputs/outputs |
| Documentation | Note |
|---|---|
| Cable and breakout box selection guide | Use this handy guide to determine your cable options |
| Connectors and pin-out diagrams | Pinout and cable wiring information, also check your product's datasheet Updated Dec 2019 |
