The ASI2816 is a multi-channel streaming radio tuner packaged in a 1U form factor.
It can be configured with up to four modules. Each module contains four radio tuners for a total of up to 16 tuners per ASI2816.
The ASI1471 module contains four AM/FM/WeatherBand (WB) tuners. The ASI1472 module contains four AM/AM-HD/FM/FM-HD tuners.
Up to sixteen ICY encoded audio streams can be sent from the ASI2816. The format of the streams is mono 44.1kHz AAC-LC.
The ASI2816 contains an OLED front panel display showing current configuration and status of all tuners including band, frequency, signal strength and HD status.
Each tuner module also includes balanced stereo audio outputs on a StudioHub compatible RJ-45 connector with a software adjustable level of 0 to +24dBu
- Up to 16 channels of AM/FM HD Radio
- Up to 16 channels of analog AM/FM audio capture
- Up to 16 channels of Weather Band capture
- Antenna connector on each module or chainable across multiple modules
- Audio monitoring of all tuners simultaneously using RJ-45 StudioHub analog outputs
- Gb Ethernet interface
- 100 to 240VAC universal power supply with IEC-320 receptacle

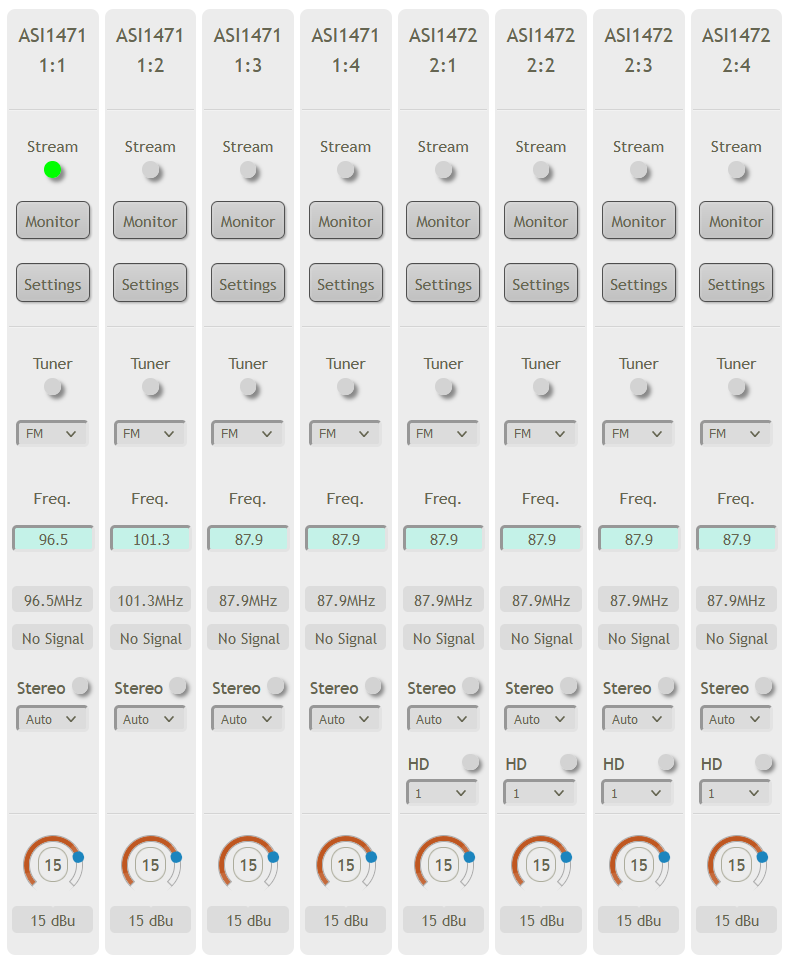

- HTML based web UI for configuring tuners and streaming parameters
- Internet streaming: One ICY encoded, mono, 48kbps, AAC-LC stream @ 44.1kHz per tuner
- Front panel display shows tuner status and audio metering
- Compatible with 3rd party logging software
HD Radio™ is a proprietary trademark of iBiquity Digital Corp.
| Module | Tuner |
|---|---|
| ASI1471 | 4 AM/FM/Weather band |
| ASI1472 | 4 AM/FM/AMHD/FMHD |
| Documentation | Downloads |
|---|---|
| ASI2816 Datasheet | 0.7.1 Firmware |
| Note on module revisions | Release notes |
To create the specific part number for the ASI2816 combination you're interested in, review the module datasheets in the table above, then use the dropdown arrows in the Model Number Calculator form below to make your selections starting with Slot 1 (you can not have empty slots between modules), then click on the Calculate Model Number button when you are done. A box will pop up with the complete part number. Use that part number to order from our Distributors and VARs or contact our sales team for additional information.
