⚠This page is a work in progress. Orders are being accepted now, with deliveries beginning in Q4 2025.

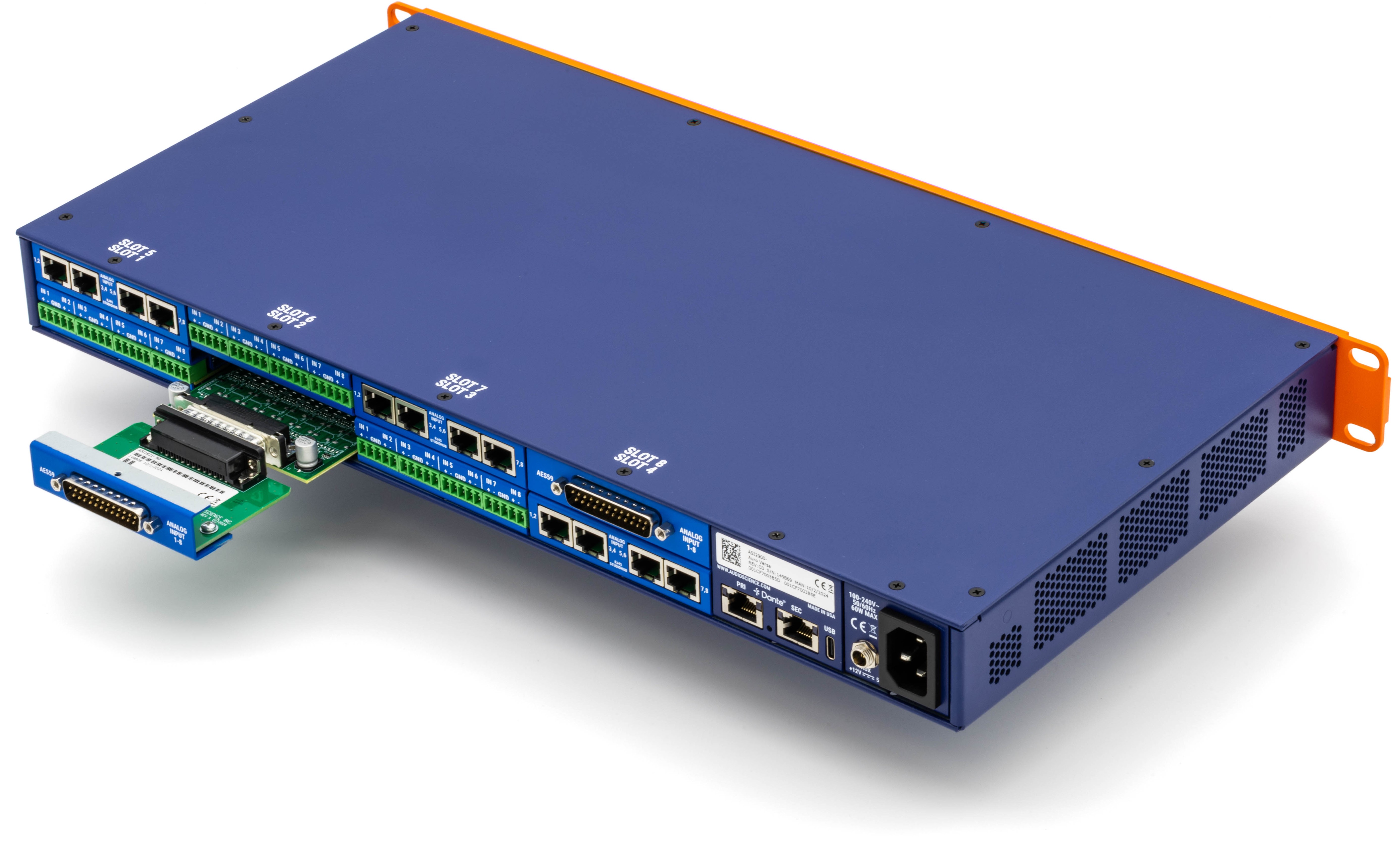

Designed for broadcast, installed AV, and live production, Auro Versa offers scalable, customizable I/O with flexibility for evolving AoIP networks. Built on an 8-slot modular chassis, it allows users to configure up to 64 total I/O channels in 8 channel increments. Available modules include Analog Mic/Line, AES/EBU and GPIO. Custom OEM modules are also available.
Auro Versa is engineered for long-term adaptability with updateable AoIP protocols. This feature will enable users to upgrade to emerging audio networking standards without replacing their core I/O hardware, ensuring a future-proof investment in their audio infrastructure.
- 8 slot modular chassis
- Up to 64 I/O total I/O channels in 8 channel increments
- Scalable and customizable
- 1U rack-mount unit
- Module connector options include Terminal Block (Phoenix style), StudioHub+ RJ-45, 50pin Centronics connector
- Available modules include 8 channel analog input or output, 4 channel AES/EBU I/O, 8 channel mic/line in, GPIO, AM/FM/HD tuner (future)
| Documentation | Date |
|---|---|
| Auro Versa datasheet | |
| Auro Versa Press Release | 03-31-25 |
| Downloads | Version | Misc | Docs | Date |
|---|---|---|---|---|
| ASIControl UDP |
| Modules | Type | In Channels | Out Channels | Input Type | Output Type |
|---|---|---|---|---|---|
| ASI1931 | Analog | 0 | 8 | None | Balanced |
| ASI1932 | Analog | 8 | 0 | Mic/Line in | None |
| ASI1933 | Analog | 8 | 0 | Unbalanced Mic/Line in | None |
| ASI1941 | Digital | 0 | 4 stereo | None | AES/EBU |
| ASI1942 | Digital | 4 stereo | 0 | AES/EBU | None |
| ASI1951 | GPIO | 16 | 16 | Opto | Relay |
| ASI1952 | GPIO | 5 | 5 | Opto | Relay |
| ASI1971 | Tuner | 4 | 0 | AM/FM/WB Tuner | None |
| ASI1972 | Tuner | 4 | 0 | AM/FM/HD/DAB Tuner | None |
To create the specific part number of an Auro Versa combination you're interested in, review the module datasheets in the table above, then use the dropdown arrows in Model Number Calculator form below to make your selections starting with Slot 1 (you can not have empty slots between modules). Be sure to select a connector for each module and then click on the Calculate Model Number button when you are done. A box will pop up with the complete part number. Use that part number to order from our Distributors and VARs or contact our sales team for additional information.
