DANTE® MICROPHONE/LINE INTERFACES

The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format.

Seven models provide various configurations of balanced analog audio inputs and outputs. Each input accommodates microphone through line level signals with a gain range of -60 to +24dBu. +48V phantom power is individually switchable on each input. Output levels are configurable up to +24dBu.

RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.

The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.

Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.

All units can also be operated in AES67 interoperability mode.

When used in conjunction with the Dante Virtual Soundcard (DVS) installed on your PC, all Iyo Dante units can operate as direct input/output PC devices.  Or use them as stand alone input/output devices to connect to other endpoints in a larger Dante network environment.

Contact our Sales Team!



FEATURES

  • Up to 32 channels of Dante audio-over-IP with AES67 interoperability
  • 48 or 96kHz sample rates
  • Balanced microphone/line level inputs with level range of -60 to +24dBu
  • Balanced line level outputs with level range of 0 to +24dBu
  • Switchable +48V phantom power on each input
  • RGB front panel LEDs provide per channel metering and stream status
  • Built in web server provides audio level configuration and monitoring
  • 1U rack-mount unit
  • Dual RJ-45 network jacks can be operated in redundant or switched mode
  • Built-in universal 90-260VAC power supply
  • Auxiliary +12VDC input provides power supply redundancy
  • Dante Domain Manager "DDM" ready
  • Public control protocol
  •  Available Documentation  Date
    Iyo Dante Press Release  2018-06-04
    Iyo Dante Quick Start Guide  2018-10-04
    Iyo Dante datasheet  2018-10-04

    Downloads Date Version Misc Documentation
    Iyo Dante firmware (zip)  8-20-2019  3.1.0  Notes  Datasheet
    Q-SYS Designer Iyo plugin
    (download from QSC Asset Manager)
     7-12-2019  3.0.0    Setup note
    Control protocol specification  7-12-2019  3.0.0 HTTP client example code

    MODEL NUMBER CALCULATOR


    Choose channels: Choose connectors:

    Terminal Block Models

     Model

    Connectors

    Audio In Channels Audio Out Channels  Input Type Output Type
    Iyo Dante 8.8M

     Terminal Block

    8 8 Balanced
    Mic/Line
    Balanced
    Line
    Iyo Dante 16.16M

    Terminal Block

    16 16 Balanced
    Mic/Line
    Balanced
    Line

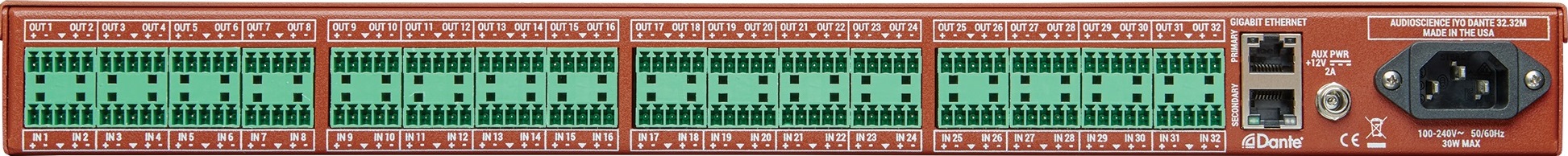

    Iyo Dante 32.32M

    Terminal Block

    32 32 Balanced
    Mic/Line
    Balanced
    Line
    Iyo Dante 16.0M

    Terminal Block

    16 0 Balanced
    Mic/Line
    None
    Iyo Dante 0.16L

    Terminal Block

    0 16 None Balanced
    Line
    Iyo Dante 32.0M

    Terminal Block

    32 0 Balanced
    Mic/Line
    None
    Iyo Dante 0.32L

    Terminal Block

    0 32 None Balanced
    Line

    DB-25/AES59 Models

     Model

    Connectors

    Audio In Channels Audio Out Channels  Input Type Output Type
    Iyo Dante 8.8MD

    DB-25

    8 8 Balanced
    Mic/Line
    Balanced
    Line
    Iyo Dante 16.16MD

    DB-25

    16 16 Balanced
    Mic/Line
    Balanced
    Line

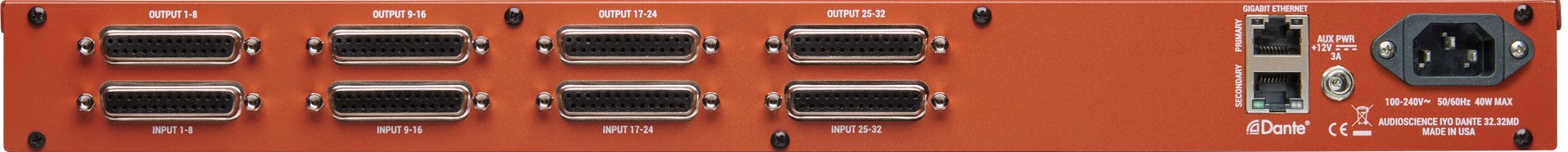

    Iyo Dante 32.32MD

    DB-25

    32 32 Balanced
    Mic/Line
    Balanced
    Line
    Iyo Dante 16.0MD

    DB-25

    16 0 Balanced
    Mic/Line
    None
    Iyo Dante 0.16LD

    DB-25

    0 16 None Balanced
    Line
    Iyo Dante 32.0MD

    DB-25

    32 0 Balanced
    Mic/Line
    None
    Iyo Dante 0.32LD

    DB-25

    0 32 None Balanced
    Line

    RJ45/Studiohub + GPIO Models

     Model

    Connectors

    Audio In Channels Audio Out Channels  Input Type Output Type
    Iyo Dante 8.8MR

    RJ-45/Studiohub + GPIO

    8 8 Balanced
    Mic/Line
    Balanced
    Line
    Iyo Dante 16.16MR

    RJ-45/Studiohub + GPIO

    16 16 Balanced
    Mic/Line
    Balanced
    Line
    Iyo Dante 32.32MR

    RJ-45/Studiohub + GPIO

    32 32 Balanced
    Mic/Line
    Balanced
    Line
    Iyo Dante 16.0MR

    RJ-45/Studiohub + GPIO

    16 0 Balanced
    Mic/Line
    None
    Iyo Dante 0.16LR

    RJ-45/Studiohub + GPIO

    0 16 None Balanced
    Line
    Iyo Dante 32.0MR

    RJ-45/Studiohub + GPIO

    32 0 Balanced
    Mic/Line
    None
    Iyo Dante 0.32LR

    RJ-45/Studiohub + GPIO

    0 32 None Balanced
    Line

    * Expanded connection options coming Summer 2019!
